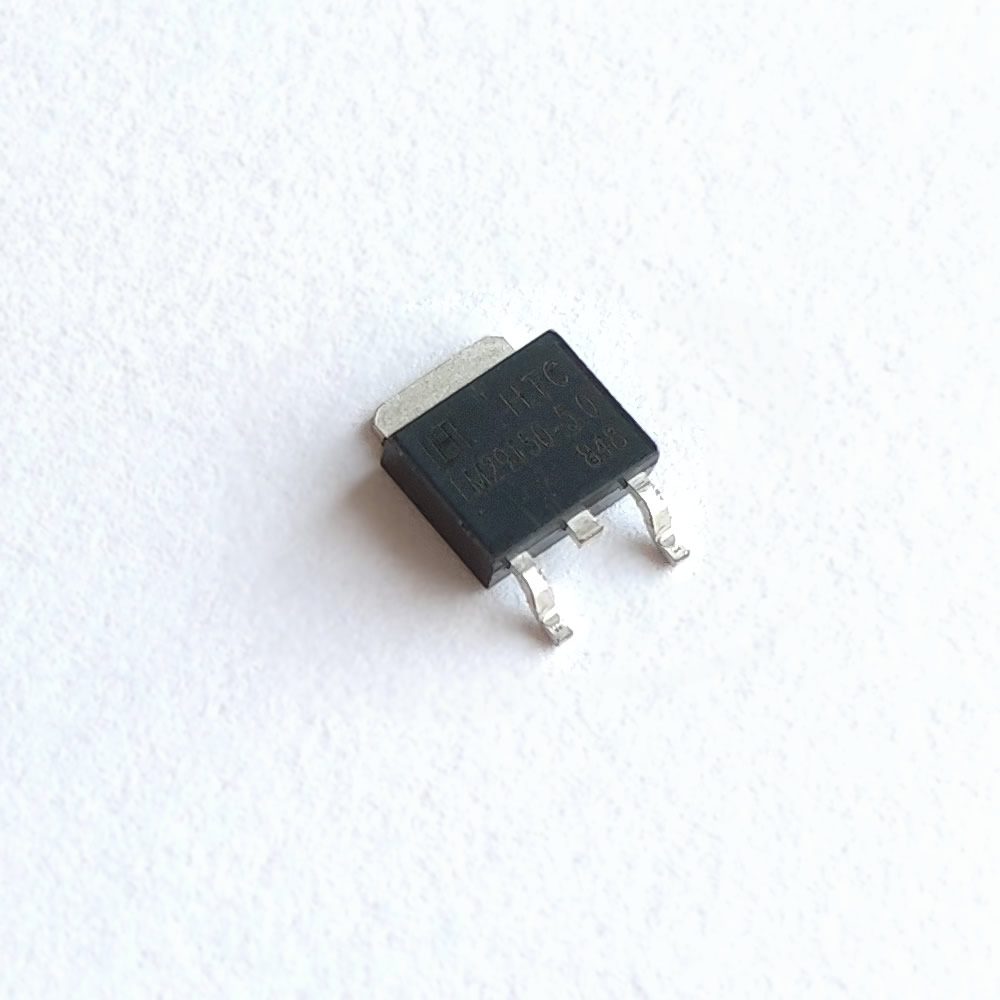

LM29150 1.5A Very L.D.O Voltage Regulator

0.79

(  0.68GBP  /  0.94USD  /  1.16CAD  )

You'll earn 0 UU Points

5V 1.5A LDO voltage regulator with very low voltage drop. It can be soldered on the back of Witty Pi 3 Mini.

27 in stock

SKU: LM29150 Category:

Tags: , , ,

Description

This is an LDO voltage regulator that can output 5V / 1.5A. Comparing with other linear voltage regulator, it has very low voltage drop (about 0.35V with full load).

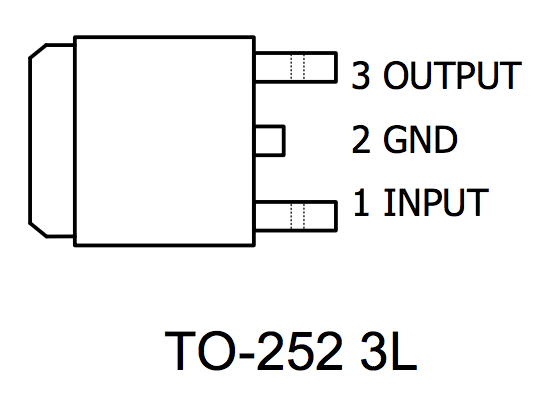

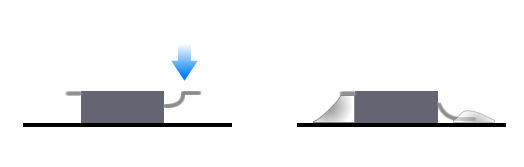

It could be soldered on the back of Witty Pi 3 Mini, to get wider input voltage range. Please double check its pinout against the labels on Witty Pi 3 Mini, and it has to be flipped before soldering to the board (footprint mistake will be fixed in future batches).

Specification:

  • Input Voltage: Up to 26V
  • Output Voltage: 5V
  • Output Current: Up to 1.5A

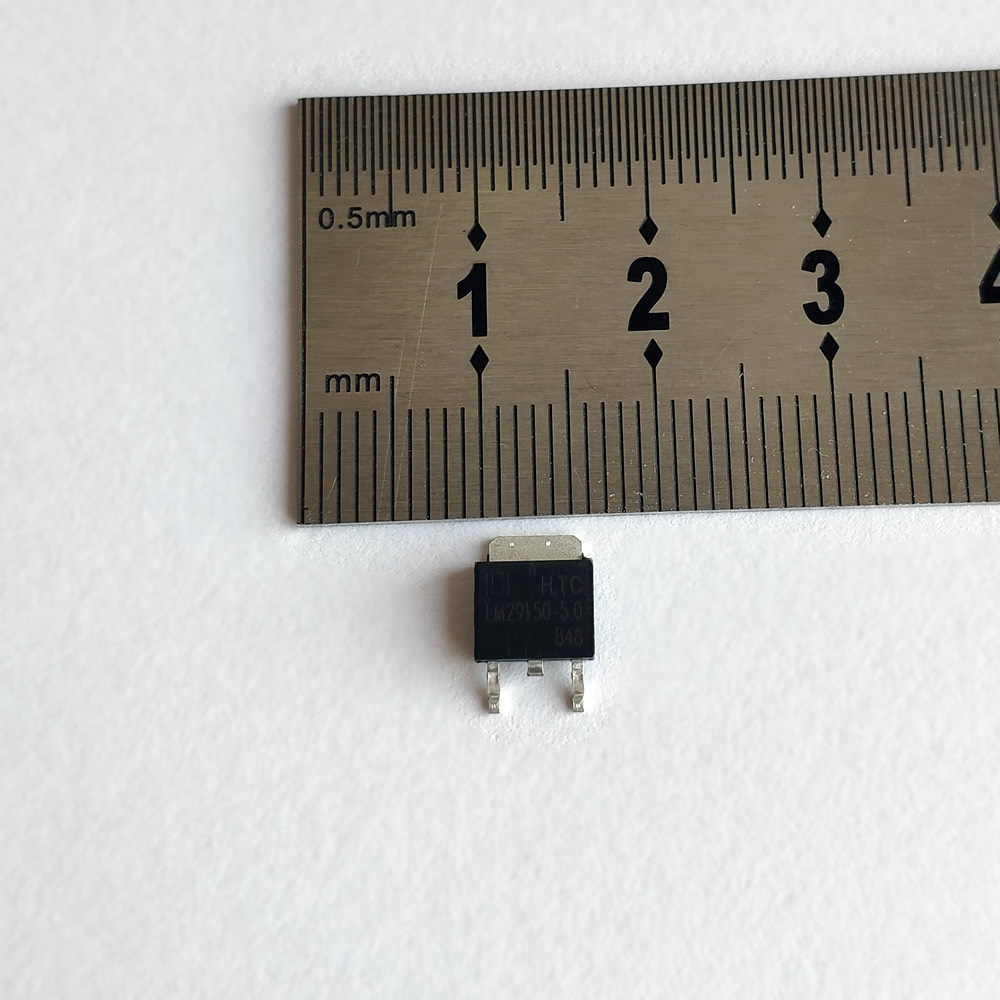

  • Package: TO-252-2(DPAK)

More information can be found in its datasheet.

Additional information

Weight 0.01 kg
Dimensions 1 × 1 × 0.5 cm
