Mini Adjustable 2A Buck DC/DC Converter Module (DC 4-20V Step-Down)

Description

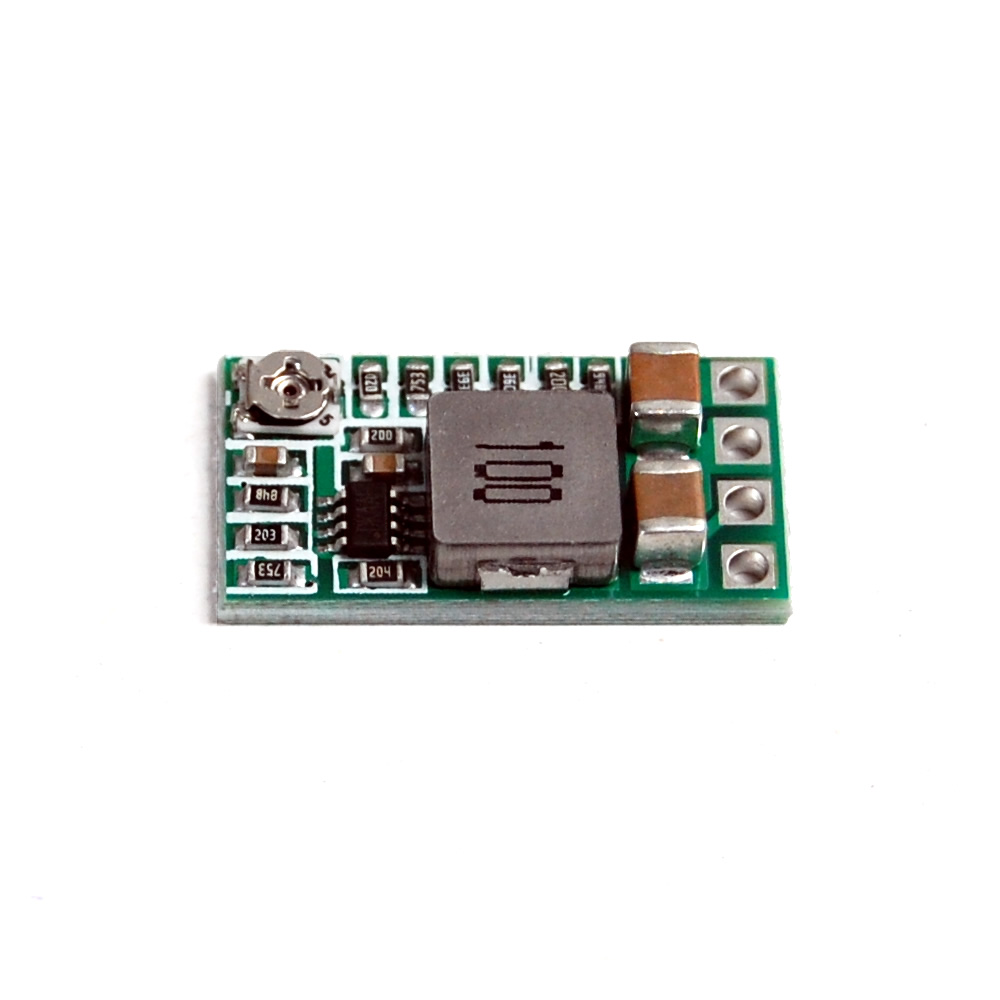

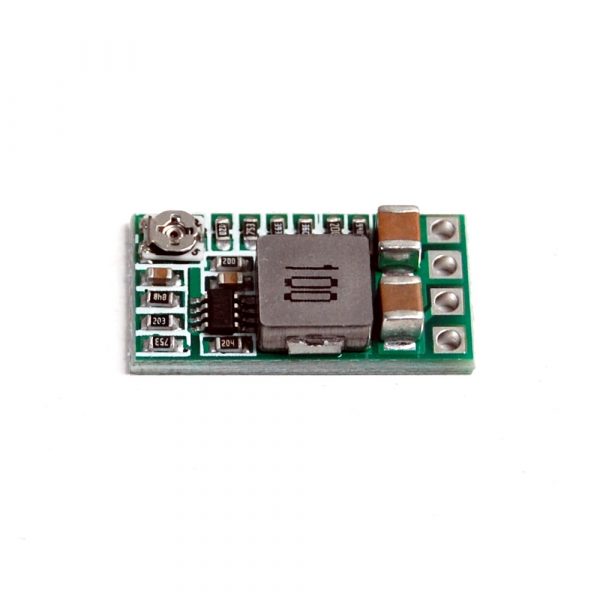

This is a buck (step-down) DC/DC converter with very small dimension (20 x 11 x 5 mm).

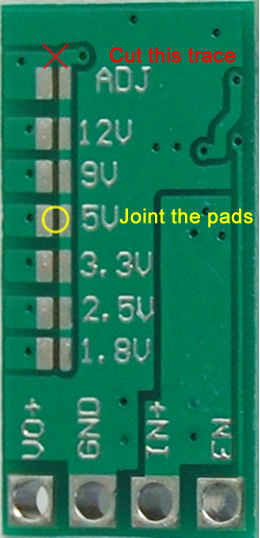

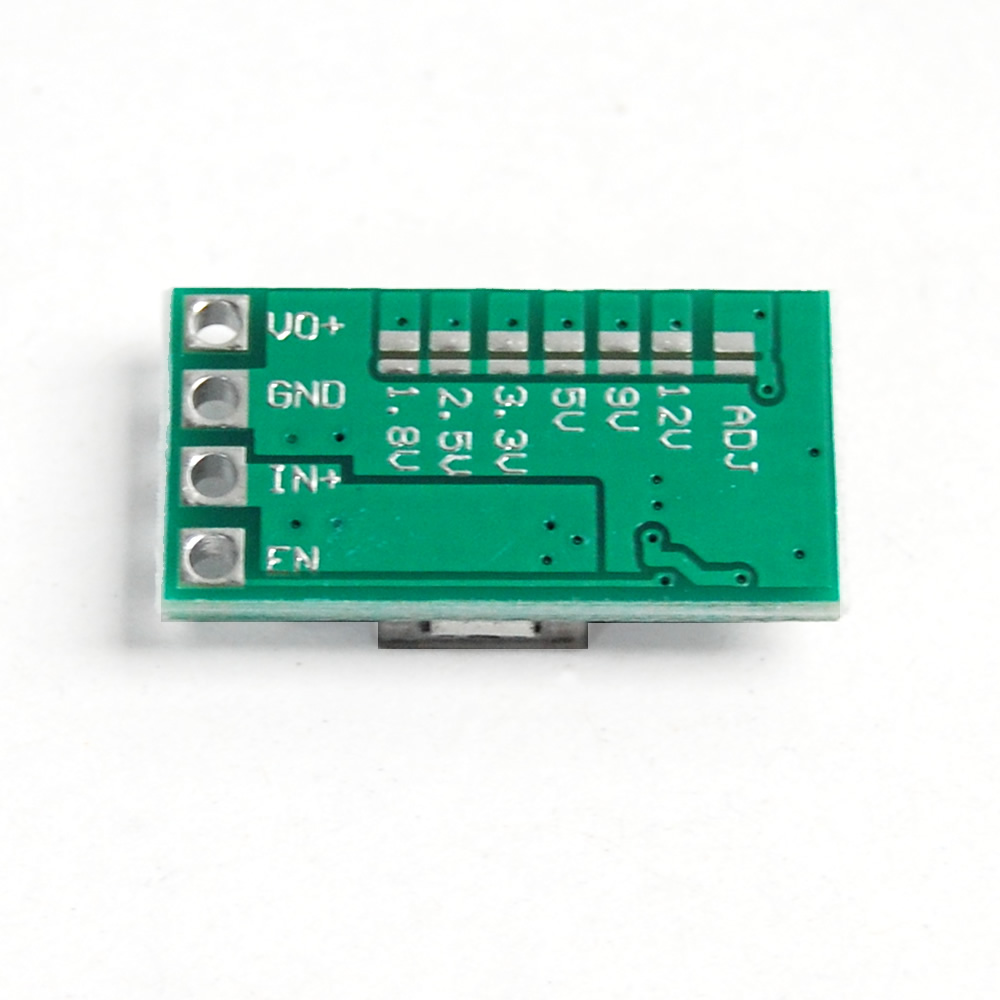

The output voltage can be adjusted via the potentiometer on board, or you can cut the “ADJ” trace on the back and joint the pads for a fixed voltage. The example below shows how to make the board output fixed 5V.

Specification

Input Voltage: DC 4~20V

Output Voltage: DC 0.8~17V Adjustable

Output Current: up to 2A

Buck Efficiency: 86%@6.5V, 87%@8V, 88%@13V, 84%@18V

Quiescent Current: 5mA@6.5V, 8mA@8V, 14mA@13V, 19mA@18V
