GPIO and ADC
What is GPIO?
GPIO stands for Gerneral Purpose Input/Ouput. It usually refers to a set of pins on your computer’s mainboard or add-on boards. These pins are not designed for any specific purpose, and they can send or receive electrical signals.
What is ADC?
ADC stands for analog-to-digital converter. It is a system that converts an analog signal into a digital signal. It can be used to measure voltage and give the numberic result.
GPIO and ADC on Vivid Unit
Vivid Unit comes with a 40-pin GPIO header, whose pinout is compatible with Raspberry Pi. Besides the two 5V power pins, other pins are at 3.3V level.
Vivid Unit also provides three 10-bit ADC channels (A0, A3 and A4). The full-scale voltage is 5V, and the resolution is 4.88mV.
VGP Utility
VGP is an open-sourced application to control or monitor GPIOs and ADC channels on Vivid Unit. It contains two executables, one for command line interface (vgp) and the other for GUI enviroment (vgpw).
VGP is by default installed into the system. If it is not, you can always install it with:
sudo apt update sudo apt install vgp
VGP in CLI (Command Line Interface)
Overview of 40-Pin
If you want to get an overview of the GPIOs in the 40-pin header, you can run:
vgp list
It will list the GPIO information in a format that similar to the wiringPi:
List All GPIOs
If you want to list all GPIOs, even including those pins that are not brought out to the 40-pin header. You can run:

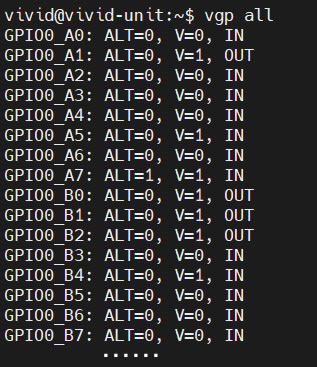

vgp all
It will list the name, alternate function, value and mode for all GPIO pins:
Change Pin Mode
If you want to change the mode of a specific pin, you can use:
vgp mode [pin]
Here [pin] should be replaced with the GPIO name.
Change Pin Alternative Function
The same physical pin can be configured to different alternative function. A pin can have up to 4 alternative functions (ALT0 ~ ALT3), and ALT0 is the default one. You can change alternative function with:
vgp alt [alt]
Here [alt] should be replaced with the alternative function (0, 1, 2 or 3).
Get Pin Value
To get value for given pin, you can use:
vgp get [pin]
Here [pin] should be replaced with the GPIO name.
The result could be 1 (high) or 0 (low).
Set Pin Value
To set value for given pin, you may use:
vgp set [pin] [value]
Here [pin] should be replaced with the GPIO name, and [value] should be 1 or 0.
Wait for Interrupt
If you wish to monitor the state of given pin, you may use:
vpg wfi [pin] [edge]
Here [pin] should be replaced with the GPIO name, and [edge] should be rising, falling or both.
This command will block until the state of the pin changes.
ADC
You can read the ADC result at specific chanel with:
vpg adc [channel]
Here [channel] should be 0(A0), 3(A3) or 4(A4). The result is a number (0~1023).
If you want to get voltage value, you may use:
vpg adc [channel] v
By adding a lower case letter v as the last argument, this command prints out the voltage value (for example 4.21).
If you want to print out the voltage value with the unit (V) together, you may use:
vgp adc [channel] V
By adding an upper case letter V as the last argument, this command prints out the voltage value with unit (for example 4.21V).
Get Help Information
If you need help during usage, you can run this command to get help information:
vgp --help
VGP in GUI (Graphical User Interface)

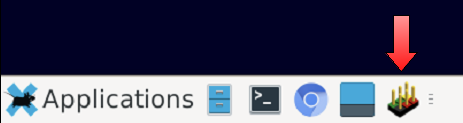

You can click this icon in the task bar to run the GUI version of VGP.
Alternatively you can find the item “VGPW” in the “System” category in application menu.

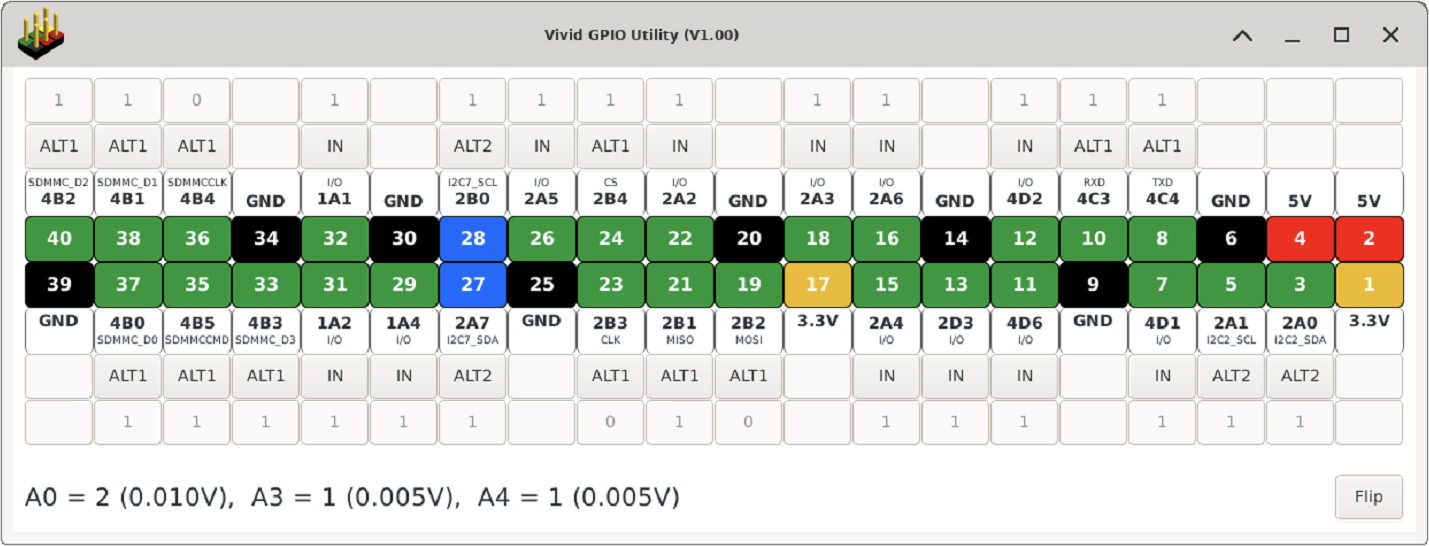

You will see the interface that represents the 40-pin header:
The value of three ADC channels are also listed at the bottom, including the raw values (0~1023) and the voltage values. These values refresh for every second.
There is a “Flip” button at the bottom right corner, and you can click it to flip the view.
You can click the mode button for each pin to change its mode or alternative function. The possilbe mode/funtion could be IN, OUT, ALT1, ALT2 or ALT3.
When the mode is set to OUT, you may click the value button to toggle the pin’s value.
When the mode is set to IN, its value will get updated automatically.
