0.28 Inch LED Mini DC Voltmeter

(1 customer review)

3.93

A mini 0.28″ DC voltmeter that can be easily integrated into your project.

Clear
SKU: MINI_VOLTMETER Category:

Tags: , ,

Description

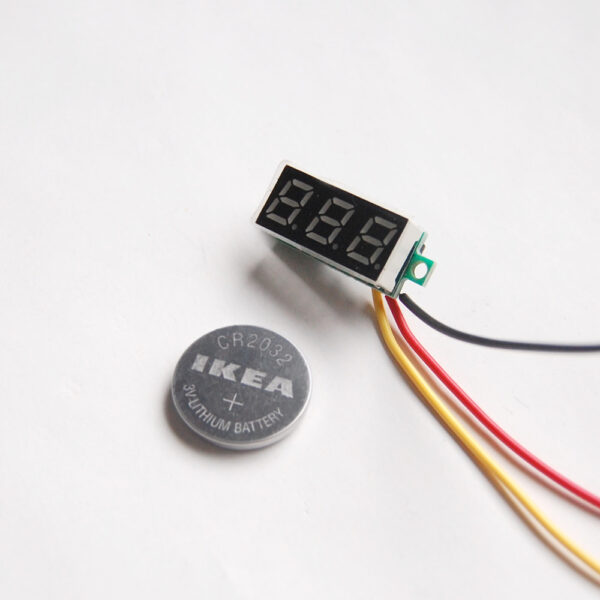

This is a mini DC voltmeter with LED display. Thanks to the small dimension it can be easily integrated into your project. It has three wires (yellow, red and black) and can measure up to 100V.

Specification

  • Power Supply:   3.5~30V
  • Measured Voltage:   0~100V (3-wire mode) or 0~30V (2-wire mode)
  • Working Temperature:  -10~+65℃
  • Measure Speed:  200ms a time
  • Accuracy:  3%

Usage Guide

This voltmeter has three wires, and they are:

  • Yellow: anode of measured voltage
  • Red: anode of power supply for the voltmeter
  • Black: common cathode of measured voltage and power supply

The typical wiring of this voltmeter is shown in figure below:

vm_3_wires

With this wiring the voltmeter can measure up to 100V. If the actual measured voltage is higher than 3.5V and is lower than 30V, you can also merge the red and yellow wires and simplify the wiring like this:

vm_2_wires

In this case the measured voltage will also work as the power supply for the voltmeter.

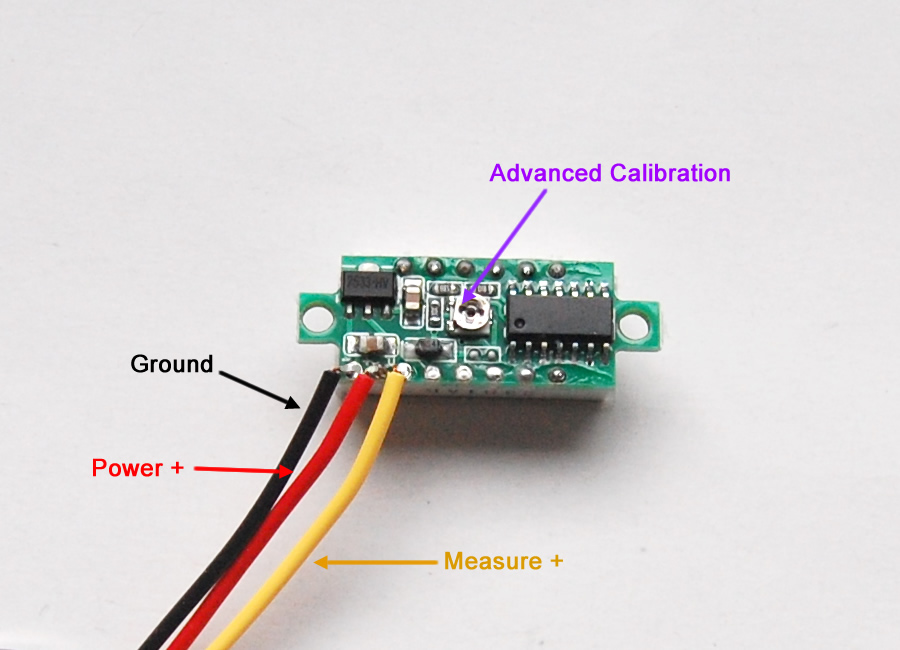

This voltmeter has been calibrated before leaving the factory. However if you want to get better accuracy,  you can calibrate it by spinning the potentiometer on its back.

03

Spinning the potentiometer clock-wise will reduce the displayed voltage value.

Additional information

Weight N/A
Dimensions N/A
Choose Color

Red, Yellow, Green, Blue

1 review for 0.28 Inch LED Mini DC Voltmeter

  1. Mike

    Great for use with a battery powered Raspberry Pi, just add a push switch. Saves having to make an ADC to monitor voltage.
