PiGear Nano: Nano-ITX Raspberry Pi Compute Module 4 carrier board

169.00

(  146.46GBP  /  181.34USD  /  247.63CAD  )

PiGear Nano is a NanoITX (12x12cm) carrier board for Raspberry Pi Compute Module 4

Out of stock

SKU: PIGEAR_NANO Categories: ,

Tags: , , ,

Description

PiGear Nano is a high performance NanoITX (12x12cm) carrier board for Raspberry Pi Compute Module 4. PiGear Nano is mainly designed for industrial applications, but you can also use it as office computer, family media center, gaming console etc.

PiGear Nano works with all models of Raspberry Pi Compute Module 4 (with or without eMMC).

You may order the black case kit with the board together.

You may order the Aluminum heatsink the the board together.

You may also order the board with a Raspberry Pi Compute Module 4 together. If you don’t want to assemble them by yourself, you can also order the fully assembled computer.

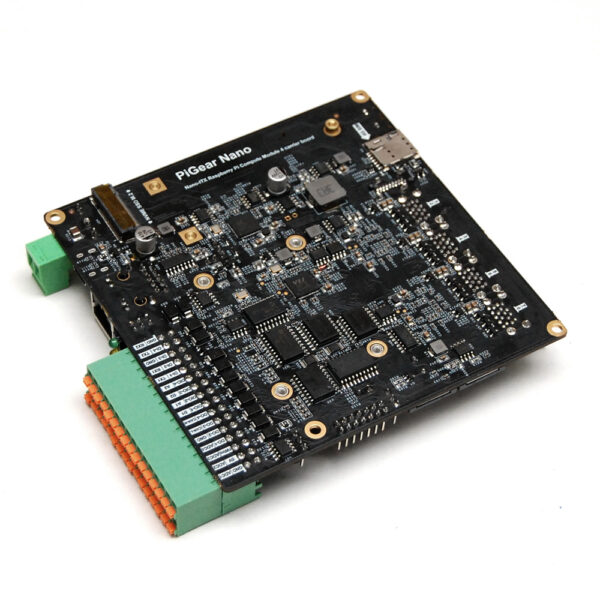

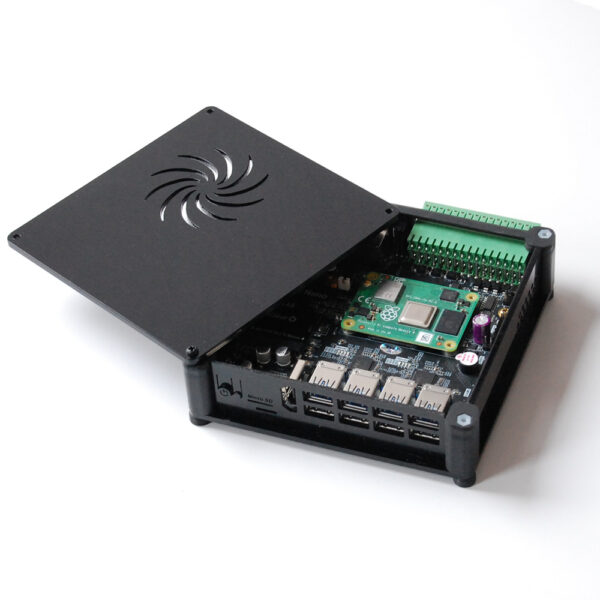

PiGear NanoPiGear Nano in the Case























Specification

Network Gigabit-Ethernet RJ45 socket x 1
MINI PCIE LTE/4G/GPRS interface x 1
On-board SIM card slot x 1
USB USB 3.0 Type-A connector x 8
USB 2.0 Type-C connector x 1 (for flashing CM4 or powering the board)
Analog & Digital I/O 18-bit ADC input x 4
Digital input x 4
Digital output x 4
Configurable digital I/O x 4
Signal Interface RS232 x 2
RS485 x 2
CAN x 1
Wire interface x 1
Storage NVME SSD M.2 interface x 1
Micro SD card slot x 1 (for Compute Module 4 Lite only)
Display HDMI Type-A connector x 1
MIPI DSI interface x 1
Camera MIPI CSI interface x 1
Other Real-time clock x 1 (with supper capacitor for off-power time keeping)
Buzzer x 1
Power Indicator x 1
Programmable LED indicator x 1
5V fan interface (PH2.0 connector)
Power button x 1 (with extension connector)
Reset button x 1 (with extension connector)
Power Supply DC 7V~30V
or  DC 5V (via USB Type-C connector)
Quiescent Current ~1mA

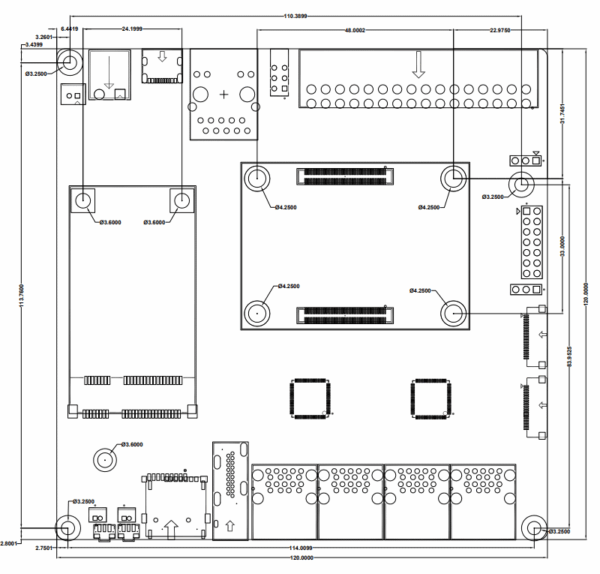

Board Size and Weight NANO-ITX 12 x 12 cm,  150g
Operating Environment Temperature -30°C~80°C (-22°F~176°F)
Humidity 0~80%RH, no condensing
No corrosive gas

Software Installation

To install PiGear Nano’s software, please run this command in your home directory:

pi@raspberrypi ~ $ wget https://www.uugear.com/repo/PiGearNano/installPiGearNano.sh

If your Raspberry Pi has internet connection, it will immediately download the script from our website, and you will then see the “install.sh” script in your home directory. Then you just need to this script with with sudo:

pi@raspberrypi ~ $ sudo sh installPiGearNano.sh

You will need to use sudo to run this script because it also tries to modify the /boot/config.txt file (will make backup first). The software will be installed in the “pgnano” directory and also UUGear Web Interface (UWI) will be installed/updated to “uwi” directory.

After installing the software, you need to restart your Raspberry Pi, so the UWI server will be running in the background. With default configuration you should be able to access your PiGearNano via UWI on address http://raspberrypi:8000/pgnano/. If your Raspberry Pi does not use raspberrypi host name, or this hostname is not resolvable in your network environment, you need to modify the uwi.conf file in “uwi” directory to include the real IP address of your Raspberry Pi.

Package Content

Each package of PiGear Nano contains:

  • PiGear Nano board x 1
  • 6x6x5 heat sink x 1 (for VL805 chip on the back of the board)
  • M3x8 metal standoff x 4
  • M3 screws x 4
  • M2 screws x 3
  • 2.542P jumper cap x 5

User Manual

More details about PiGear Nano can be found in its user manual: https://www.uugear.com/doc/PiGearNano_UserManual.pdf



Additional information

Weight 0.23 kg
Dimensions 85 × 56 × 9 cm
