Ace4U: Cable-Free 4-Port USB Hub for Raspberry Pi A+ / 3A+

(2 customer reviews)

9.43

(  8.17GBP  /  10.12USD  /  13.82CAD  )

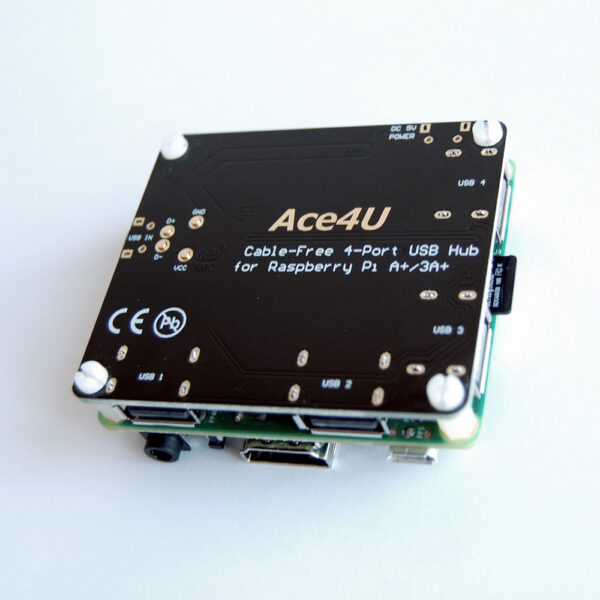

This is a 4-port USB hub for Raspberry Pi A+/3A+, and it can be attached underneath. The 4 pogo pins will connect testing pads on Raspberry Pi A+/3A+, hence no soldering will be required.

Out of stock

SKU: ACE4U_USB_Hub Categories: ,

Tags: , , , , ,

Description

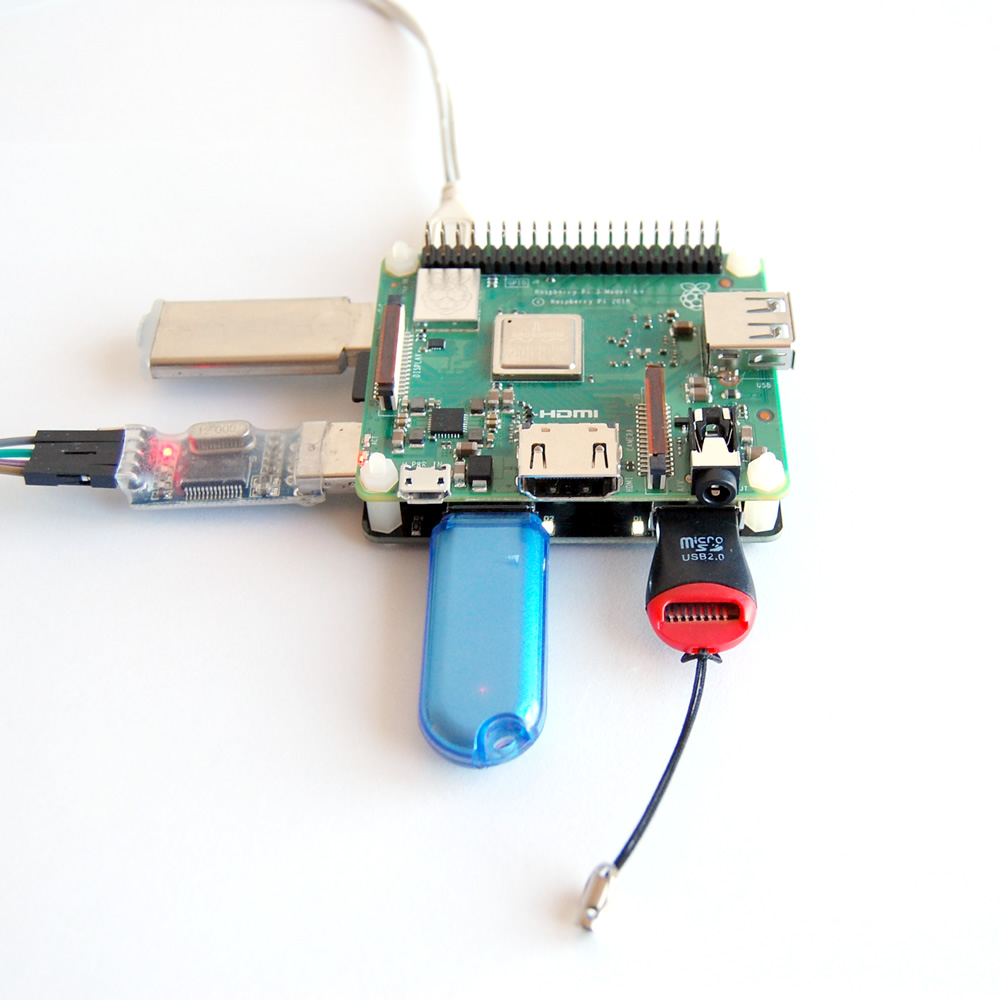

This is a 4-port USB hub for Raspberry Pi A+/3A+, and it can be attached underneath. After attaching this USB hub to your Raspberry Pi A+/3A+, it immediately has 4 USB ports that could transfer data in USB 2.0 high-speed. The 4 included pogo pins will connect the testing pads on Raspberry Pi A+/3A+, hence no soldering will be needed.

Ace4U can back-power your Raspberry Pi A+/3A+, or take power from your Raspberry Pi A+/3A+ if you don’t like back-powering. You only need one 5V DC power supply to power them together. The power supply can be connected to the power micro USB port, or the XH2.54 connector on board.

The orange LED on board works the power indicator, and will lights up when power supply is connected.

Each USB port has a dedicated white LED as activity indicator, and a dedicated electrolytic capacitor to help stabilizing the output voltage.

If you use this USB hub with other types of computer, you can use a USB cable (not included) to connect the micro-USB port (USB in) on board to the up-stream USB port on the computer.

You can also get an Acrylic case for it.


User Manual

http://www.uugear.com/doc/Ace4U_UserManual.pdf

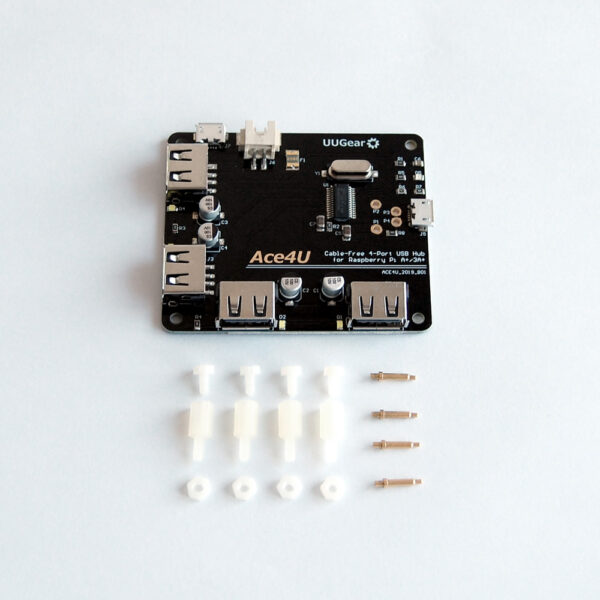

 Package Content

Each package of this USB hub contains:

  • Ace4U board x 1
  • Plastic male-female standoff x 4
  • 5 screw x 4
  • 5 nut x 4
  • Pogo pin x 4

 Specifications

Dimension: 65mm x 56mm x 9mm

Weight: 20 g (net weight without any accessory)

Power Mode: Bus-Power / Self-Power

Standards: USB 2.0 and 1.1 compatibility

Working Voltage: 5V DC

Static Current: 1mA

Maximum Output Current: 2A for all ports in self-power mode, 500mA for all ports in bus-power mode

Operating Temperature: 0°C~70°C

Storage Temperature: -20°C~80°C

Humidity: 0~80%RH, no condensing




Additional information

Weight 0.025 kg
Dimensions 6.5 × 3 × 0.9 cm

2 reviews for Ace4U: Cable-Free 4-Port USB Hub for Raspberry Pi A+ / 3A+

  1. Anthony

    Quite reliable USB hub for my RPi 3A

  2. Dan

    Wish I could still get one if these. Unique form factor, can’t get else where.
