PiGear Nano Fully Assembled CM4 Computer

194.00240.50

Fully assembled Raspberry Pi CM4 computer using PiGear Nano and its black case kit. OS and software are pre-installed (for variation with CM4).

Clear
SKU: PIGEAR_NANO_ASMEMBLED Categories: ,

Tags: , , ,

Description

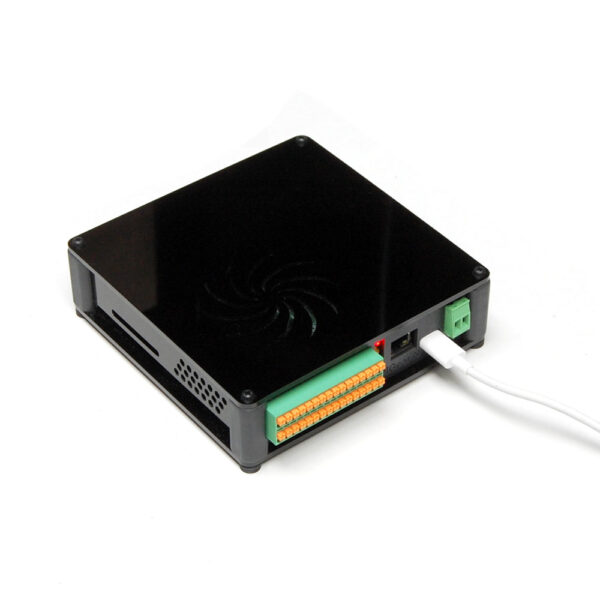

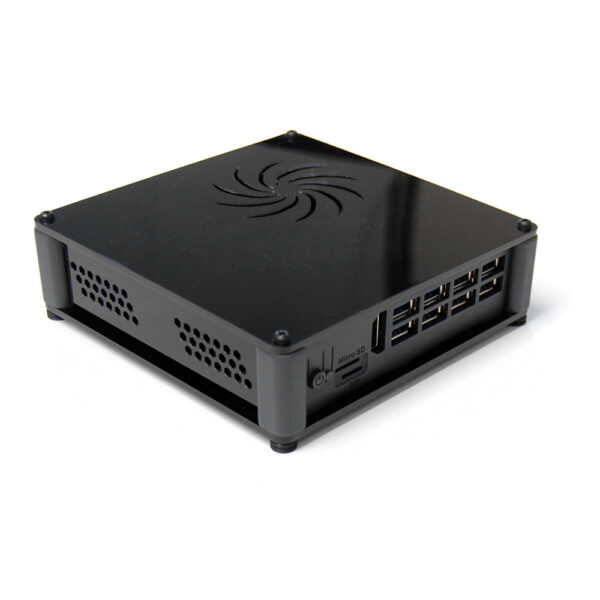

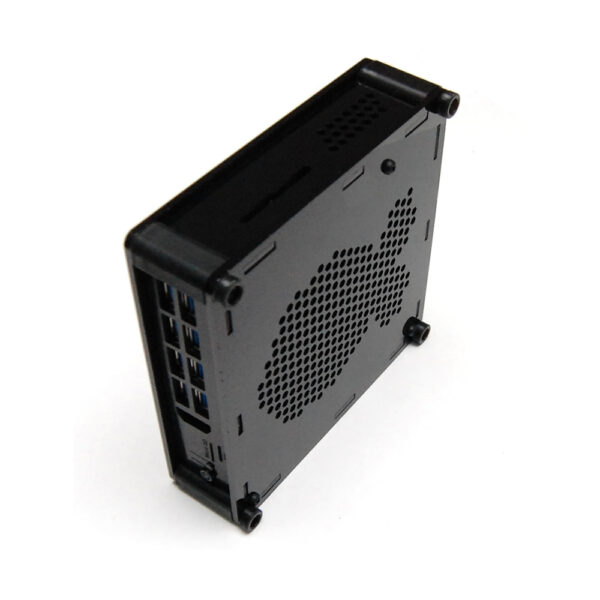

This is a fully assembled Raspberry Pi Compute Module 4 computer, using PiGear Nano and its black case kit. The whole machine has dimension 135 x 135 x 40mm, and net weight is only 323 g.

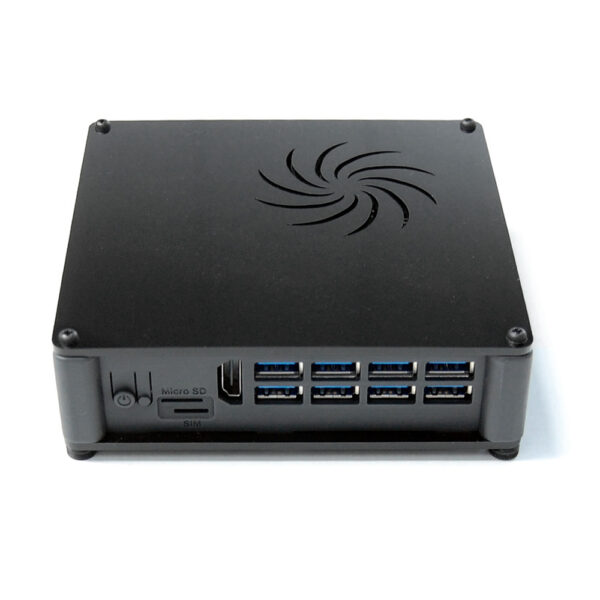

This is a fully assembled Raspberry Pi CM4 computer using PiGear Nano and its black case kit. This computer comes with eight USB 3.0 ports, NVME SSD M.2 interface, Mini PCIE LTE/4G/GPRS interface, four 18-bit ADC channels, digital inputs/outputs, RS232, RS485, CAN bus, HDMI, Ethernet, realtime clock etc.

Remarks: If you order the variation with Raspberry Pi Compute Module 4 (CM4), we will install the latest Raspberry Pi OS into it and also install the software for PiGear Nano for you. The CM4 will also be properly mounted on the carrier board so you will receive a fully functional computer.

Remarks: This product doesn’t include the Aluminum heatsink. However if you order the heatsink in the same order, we can also install the heatsink for you.

Specification

Network Gigabit-Ethernet RJ45 socket x 1
MINI PCIE LTE/4G/GPRS interface x 1
On-board SIM card slot x 1
USB USB 3.0 Type-A connector x 8
USB 2.0 Type-C connector x 1 (for flashing CM4 or powering the board)
Analog & Digital I/O 18-bit ADC input x 4
Digital input x 4
Digital output x 4
Configurable digital I/O x 4
Signal Interface RS232 x 2
RS485 x 2
CAN x 1
Wire interface x 1
Storage NVME SSD M.2 interface x 1
Micro SD card slot x 1 (for Compute Module 4 Lite only)
Display HDMI Type-A connector x 1
MIPI DSI interface x 1
Camera MIPI CSI interface x 1
Other Real-time clock x 1 (with supper capacitor for off-power time keeping)
Buzzer x 1
Power Indicator x 1
Programmable LED indicator x 1
5V fan interface (PH2.0 connector)
Power button x 1 (with extension connector)
Reset button x 1 (with extension connector)
Power Supply DC 7V~30V
or  DC 5V (via USB Type-C connector)
Quiescent Current ~1mA
Board Size and Weight NANO-ITX 12 x 12 cm,  150g
Operating Environment Temperature -30°C~80°C (-22°F~176°F)
Humidity 0~80%RH, no condensing
No corrosive gas

User Manual

More details about PiGear Nano can be found in its user manual: https://www.uugear.com/doc/PiGearNano_UserManual.pdf



Additional information

Weight 0.23 kg
Dimensions 85 × 56 × 9 cm
RPi CM4

None, 2GB RAM, 8GB eMMC, no WiFi (CM4002008), 2GB RAM, 16GB eMMC, no WiFi (CM4002016)
