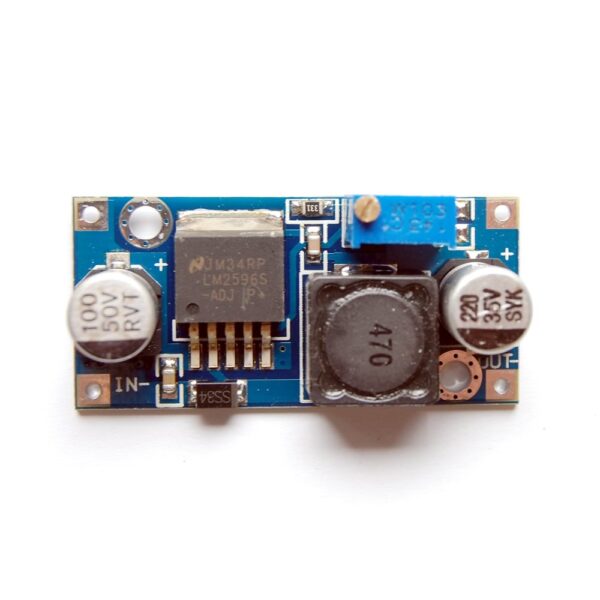

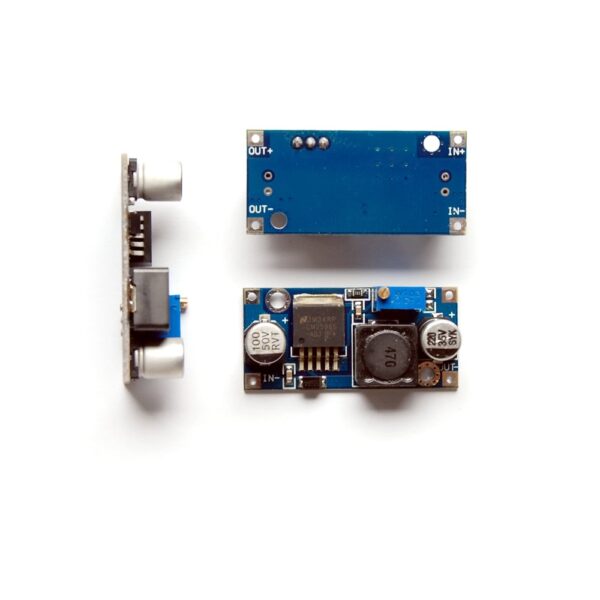

LM2596 Adjustable Step-down Power Module DC-DC Converter

3.93

(  3.41GBP  /  4.22USD  /  5.76CAD  )

Adjustable DC-DC step-down (buck) module that accepts up to 40V input and outputs 1.2V~Vin, with maximum 3A current.

15 in stock

SKU: LM2596_DC_DC_STEPDOWN Category:

Tags: , , , ,

Description

This DC-DC step-down (buck) module accepts up to 40V input and outputs from 1.2V to to input voltage. It has very strong output ability and could output up to 3A current.

The output voltage could be adjusted by tuning the blue potentiometer.

Specification

  • input voltage: up to 40V
  • output voltage: 1.2V~Vin (adjustable)
  • output current: up to 3A
  • with adjustable potentiometer to adjust the output voltage

Additional information

Weight 0.02 kg
Dimensions 4.4 × 2.1 × 1.4 cm
